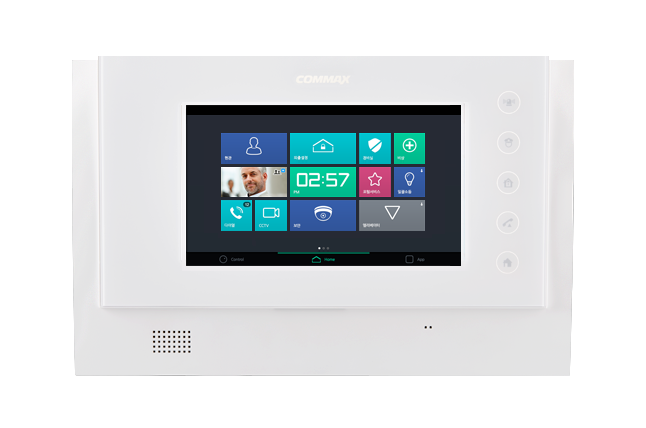

CAV-705UW/ DRC-40K (Smartphone Model)

Image result for cav-705uw commax
FUNCTION:-
7 inch TFT LED display
Touch-screen with user-friendly GUI application
DID function
Security function & Light control
Energy management system
Users can connect remotely via their smart phones(Secumax)
SPECIFICATION: –
Power source
DC 14.5V, 2.1A
Power consumption
Standby: 560mA, Maximum: 1.4A
LCD size
7 inch wide color LCD
Mount type
Built-in(Flush-mounted type)
Operating temp.
0°C~40°C
Wiring
Guard/Lobby : Common 10
wires+5C2V Coaxial cable(2-wire)
Door camera : 4-wire
Distance-
Individual entrance : 50m(0.65Ø)
Guard station : 1km(0.65Ø)
Public entrance : 300m(5C2V)
Dimension(mm)
CAV-705U: 276(W)×178(H)×22(54)(D)
CAV-705UW: 276(W)×178(H)×31(D)
