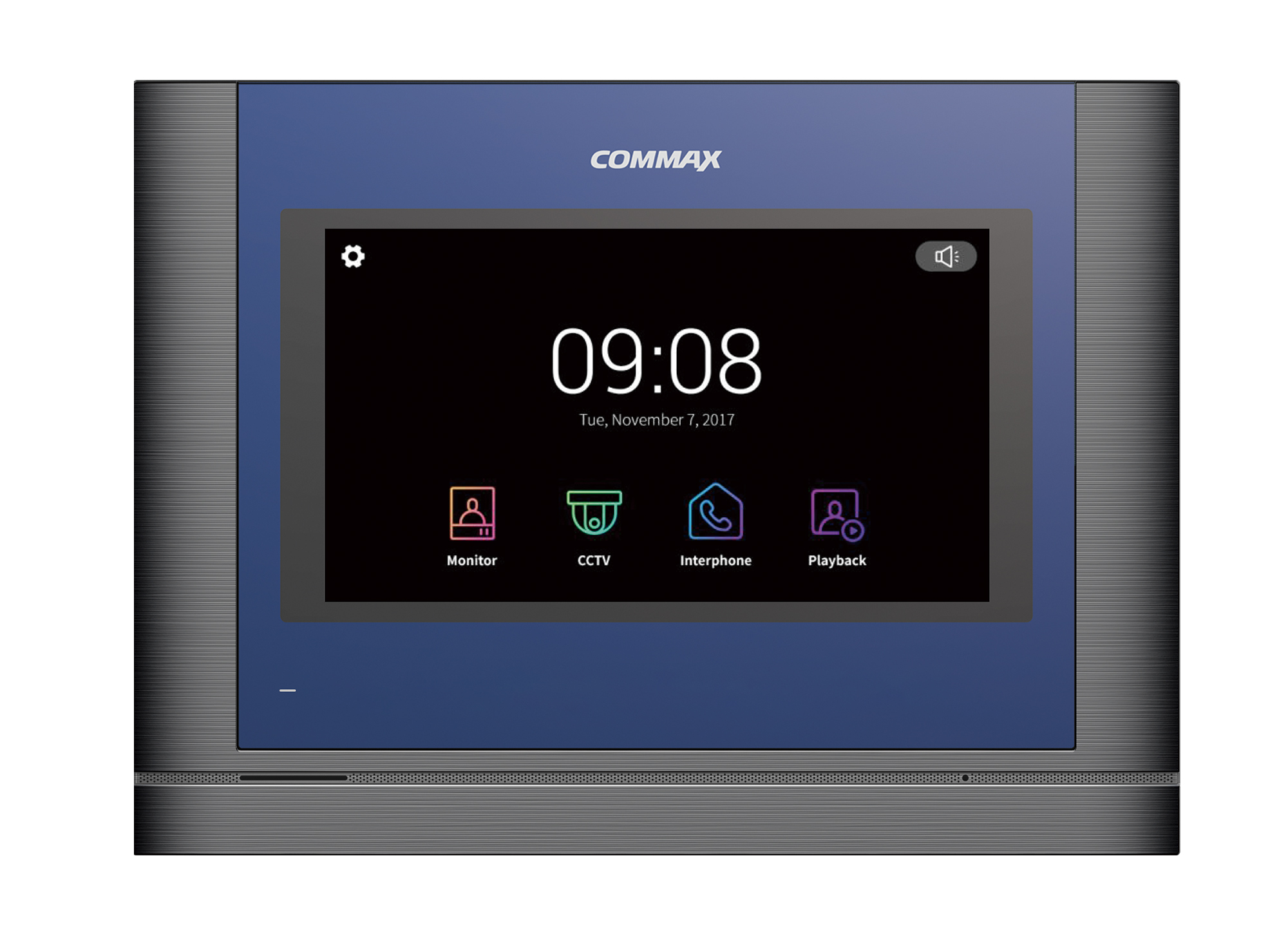

CDV-704MA/DRC-40K

CDV-704MA



FEATURES
7 inch LED Display(1024 X 600), Full touch display
Connecting 2 individual door camera & 2 CCTV
(Call from individual door camera, all monitor will be displayed.)
Intercommunicate between monitors(Page & Call)
(All master & each monitor has its own ID.) (Can’t connect with DP-4VHP)
Saving image & movie clip (Without Micro SD, only image can be saved, With Micro SD, image & movie clip can be saved.)
Motion detection and image saving(Optional)
CCTV Monitoring for main entrance
AHD 1.3mega solution

SPECIFICATION
Power source
AC 100-240V, 50/60Hz
Display
7inch wide color LCD
Mount type
Wall-mounted
Operating temp.
0℃~40℃
Wiring
Door camera : 4 wires
Interphone : 4 wires
CCTV : 2 wire
Distance
Door camera : 50m(0.65Ø)
Consumption
Max.10W, standby 3.
Dimension(mm)
244(W)×180(H)×18(D)
