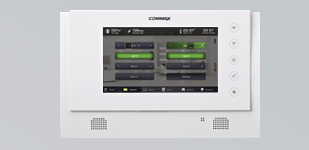

CAV-705U ( WALL PAD)

A sensational design for a wall pad, that cannot be Found from anywhere in the door phone industry, A hands-free type wallpad, provides various home Network functions to match its finest design.

iF DESIGN AWARD

iF DESIGN AWARDLuxurious and durable design.

ENHANCED SECURITY

ENHANCED SECURITY

Enhanced security features provide a better unmanned security and access control system.

CONVENIENCE

  • CONVENIENCE Touch-screen with user friendly GUI application and various convenience functions enabled.

FUNCTION

FUNCTION

Smart ECO : Energy Management System(EMS)/Standby Power Breaker
Smart security : Burglar/Disaster prevention/Access control/Unmanned security/Parking control/Unmanned delivery/Visitor image saving function during the absence via “away mode”setting
Smart control : Mobile control/Remote metering/Light control/batch-mode control/Connectivity with various home devices and sub-phones within a household/Household-to-household call/telephone/extra monitor connection/Door release function for a public entrance and monitoring/Page and call security guard station/OSD feature

SPECIFICATION

Power source
DC 14.5V, 2.1A
Power consumption
Standby: 560mA, Maximum: 1.4A
LCD size
7 inch wide color LCD
Mount type
Built-in(Flush-mounted type)
Operating temp.
0℃~40℃
Wiring
Guard/Lobby : Common 10
wires+5C2V Coaxial cable(2-wire)
Door camera : 4-wire
Distance
Individual entrance : 50m(0.65Ø)
Guard station : 1km(0.65Ø)
Public entrance : 300m(5C2V)
Dimension(mm)
276(W)×178(H)×22(54)(D)
Installation hole size(mm)
209(W)×133(H)
Fill up box size(mm)
234(W)×135(H)×50(D)

This is one of the most popular models in the premium  segment and fast gaining demand in the Indian Industry .

 WIRING DIAGRAM
